Zone Offroad 2007-2013 Chevy 1500 4wd 3.5" Adventure Series Lift System

Regular price
$799.95
Sale price
$799.95

Zone Offroad 2007-2013 Chevy 1500 4wd 3.5″ Adventure Series Lift System

This product fits the following applications:
  • 07-13 Chevy 1500 Pickup 4WD
  • 07-13 GMC 1500 Pickup 4WD
  • Will not fit 2007 classic body style (aka 99-06)

sgAddEvent(window, 'load',function() { var sgPoupFrontendObj = new SGPopup(); sgPoupFrontendObj.popupOpenById(6) }); Zone Offroad 2007-2013 Chevy 1500 4WD 3.5" Adventure Series Lift System

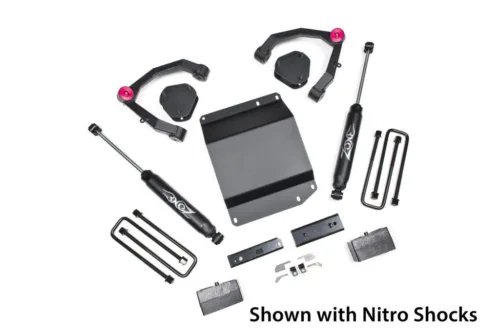

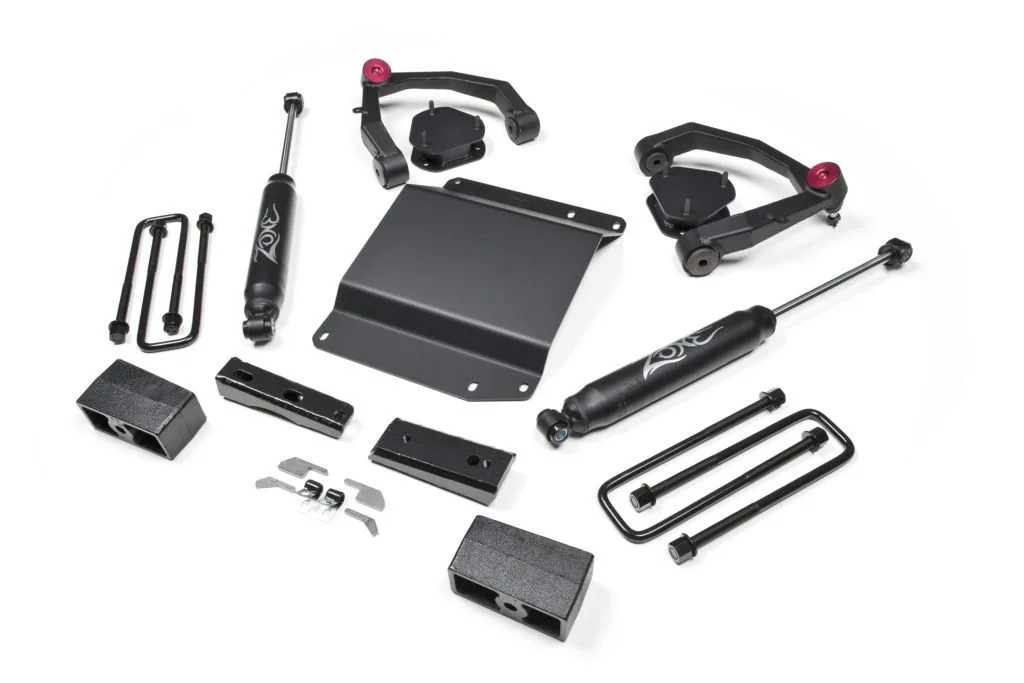

Zone Offroad C29 - Just like the Zone Offroad 1500 Ram Adventure Series Kits, this system is built around the Zone Offroad heavy-duty replacement upper control arms. Made from fully weld 1/8" steel plate construction as well as CNC machined ball joint and bushing mounts, these arms dwarf the factory components. In addition to overall strength of construction, the new arms trump the factory components by providing more range of motion. The arms utilize high quality MOOG brand ball joints that can handle heavy duty use and work in conjunction with OE-style rubber mount bushings to provide a quiet ride.

The ball joints are greaseable and easily replaced with readily available parts at the end of their service. Proper brake line attachment points are included on the arms where needed for a factory-like fit. Matching the construction and quality of the new UCAs is a fully integrated front differential drop and differential skid plate system that relocates the differential for optimal driveline angles.

The included strut spacers provide a full 3.5" of lift and install easily on the factory struts without the need of a strut compressor. In order to match up rear with the newly lifted front, a 3" block and u-bolt system is included that replaces the factory 1" block to net 2" and provide an overall level vehicle stance. This kit includes Nitro rear shocks to round out the kit.

This product fits the following applications:

  • 07-13 Chevy 1500 Pickup 4WD
  • 07-13 GMC 1500 Pickup 4WD

Quick Specs

  • Front Lift Height: 3.5
  • Front Lift Method: Upper Control Arms
  • Rear Lift Height: 2
  • Rear Lift Method: Block
  • Install Time Hrs: 3-4
  • Difficulty Level 1-5: 3
  • Wheel Size: 17″
  • Back Spacing: 5″
  • Max Tire Size: 285/70-17

Featured Technology & Benefits

  • Fully welded, heavy duty upper control arms that dwarf the factory arms.
  • CNC-machined UCA bushing and ball joint cups.
  • OE rubber bushings and greasable factory style ball joints for quiet, reliable, and low maintenance operation.
  • Improved UCA range of motion compared to stock arms
  • UCAs utilize replaceable ball joints and bushings
  • Fully intergraded front differential drop and skid plate for optimal driveline angles

Important Notes!

  • Certain tire/wheel packages can fit with the addition of the provided weld-on steering stops. These are necessary for deeper backspaced wheels to maintain proper tire clearance to the new upper control arms.
  • Minor frame and differential trimming required - see installation instructions for details
  • Do Not combine this kit with any other suspension lift
  • Will not fit 2007 classic body style (aka 99-06)

Zone Benefits for Zone Offroad C29 Kit

  • Experience – We’ve been involved in designing and selling lifted suspension systems for over 20 years
  • Competitive pricing – Our kits have been designed to fit your budget without sacrificing quality or performance.
  • Quality Products – Zone products are manufactured in the USA with premium materials and skilled workmanship.
  • Designed for Easy Installation  –  Full 3D modeling is used to ensure an easy installation and long term performance.
  • Detailed, Easy to Follow Instructions – Every kit includes installer friendly instructions with lots of photos, diagrams, and helpful hints.

Zone Off-Road suspension leveling kits are quick and easy to mount and will still give you the same comfortable ride as before adding this lift leveling kit to your SUV or truck. Install time on these runs anywhere from 1 hour to 4 hours. All the truck leveling lift kits do include all mounting hardware needed.

Adding a Zone suspension leveling kit to your truck or SUV will give you the look you desire and a little extra ground clearance while maintaining the factory ride at a reasonable cost. For the ultimate in leveling lift kits Zone Off-Road has just what you crave.
