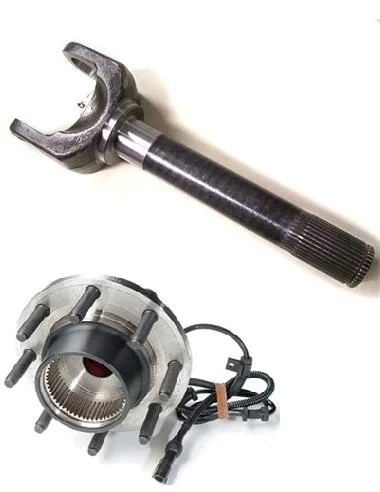

Hub Bearing with Outer Axle Shaft Kit 99 04 Super Duty

$723.80 $419.78

Availability: Only 4 left in stock

*THIS KIT SHIPS TO LOWER 48 US STATES ONLY – PLEASE CONTACT US IF OUTSIDE THIS SHIPPING AREA

Hub & Wheel Bearing Kit w/ABS + Outer Axle Shaft + Needle Bearing + Axle Extension Housing Seal + Hub Seal + Hub O-Ring Seal, all in one convenient kit.

Specifications:

Hub Bearing:

  • Fits RH or LH FRONT
  • 4 bolt flange
  • Includes ABS sensor
  • Correct for Excursion & Super Duty (SD) trucks that have 4wd, 4 wheel ABS, SRW (single rear wheels), & 13mm thick hub flange
  • Direct replacement
  • Replaces dealer part numbers: F81A-2B663BG, F81A2B663BG, F81A-2B663BH, F81A2B663BH, F81Z-1104BG, F81Z1104BG, F81Z-1104BH, F81Z1104BH, YC35-2B513BA, YC352B513BA, YC35-2B663BA, YC352B663BA
  • Fits 8 Lug Wheel
  • Studs already installed
  • Built to strict quality control standards
  • Will not fit trucks with 10mm thick hubs because it will cause the front brakes to drag

Specifications:

Outer Axle Shaft:

  • Dana 50/60
  • 1.31in. 30 Spline
  • 9.38in. Overall Length
  • Accepts 5-806X U-Joint
  • For Use In 1999-2004 Ford Dana 50 & Dana 60

Dana Spicer Stub axles are available as an alternative to the high priced poor quality after market replacements. These shafts are available for most popular applications.

Kit Also Includes:

  • Axle/Hub Needle Bearing
  • F81Z-1S175-HCA Axle Extension Housing Seal
  • F81Z-4A322-AA Hub O-Ring Seal
  • F81Z-3254-CB Hub Seal

Note: For 1999 models you can find the production date of your vehicle on either the outer edge of the driver’s front door or on the latch piller that the door closes on.

Weight 58 lbs
Dimensions 18.0 × 10.0 × 10.0 in
